Hikvision - 16-ch 1080p Mini 1U H.265 AcuSense DVR

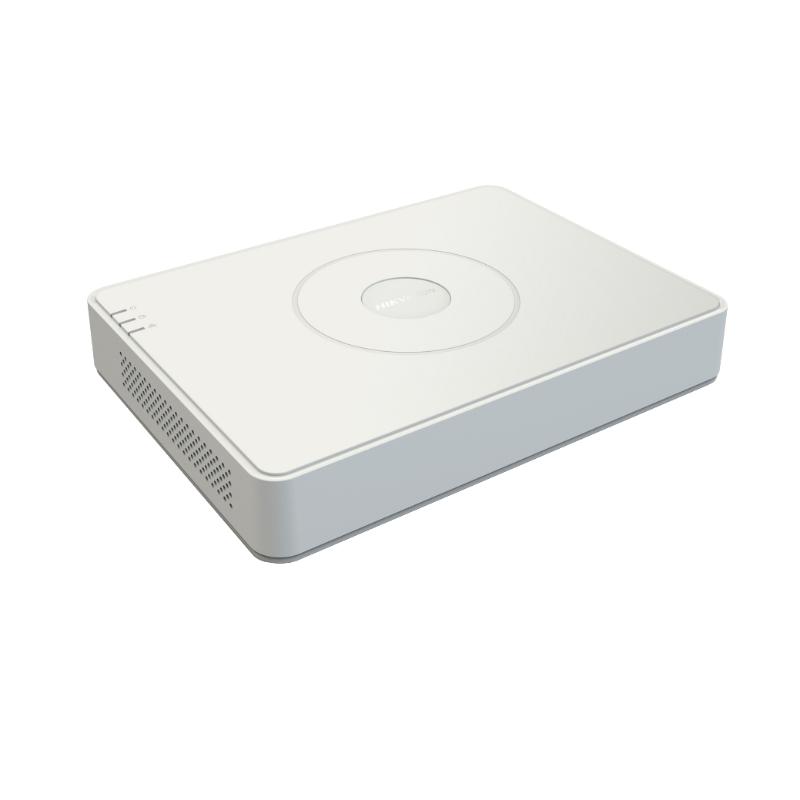

Hikvision iDS-7116HQHI-M1/S EOL 16-ch 1080p Mini 1U H.265 AcuSense DVR The Hikvision iDS-7116HQHI-M1/S is a 16-channel 1080p Mini 1U H.265 AcuSense DVR designed to enhance surveillance systems with advanced features. Notably, this model has reached its End of Life (EOL) status. Specification Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported; Perimeter Protection Line Crossing Detection/IntrusionDetection 4-ch Facial Detection Facial Detection and Capture Face picture detection, face picture search Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution When 1080p Lite mode is not enabled:3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream:When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bitrate 32 Kbps to 6 Mbps Dual-stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps Video and Audio IP Video Input 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input 16-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection Incoming Bandwidth 96 Mbps HDTVI Input 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps HDCVI Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps CVBS Input PAL/NTSC HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)16-ch via coaxial cable Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous playback 16-ch Network Remote Connection 128 Total Bandwidth 128 Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF Network Interface 1, RJ45 10M/100M/1000Mself-adaptive Ethernet interface Auxiliary Interface SATA 1 SATA interface Capacity Up to 10 TB capacity for each disk USB Interface Real panel: 2 × USB 2.0 Alarm In/Out N/A General Power Supply 12 VDC, 1.9 A Consumption ≤ 15 W Working Temperature -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) Weight ≤ 1 kg (2.2 lb)
